CL DL 10
Recessed LED downlight with DIP-selectable power and color

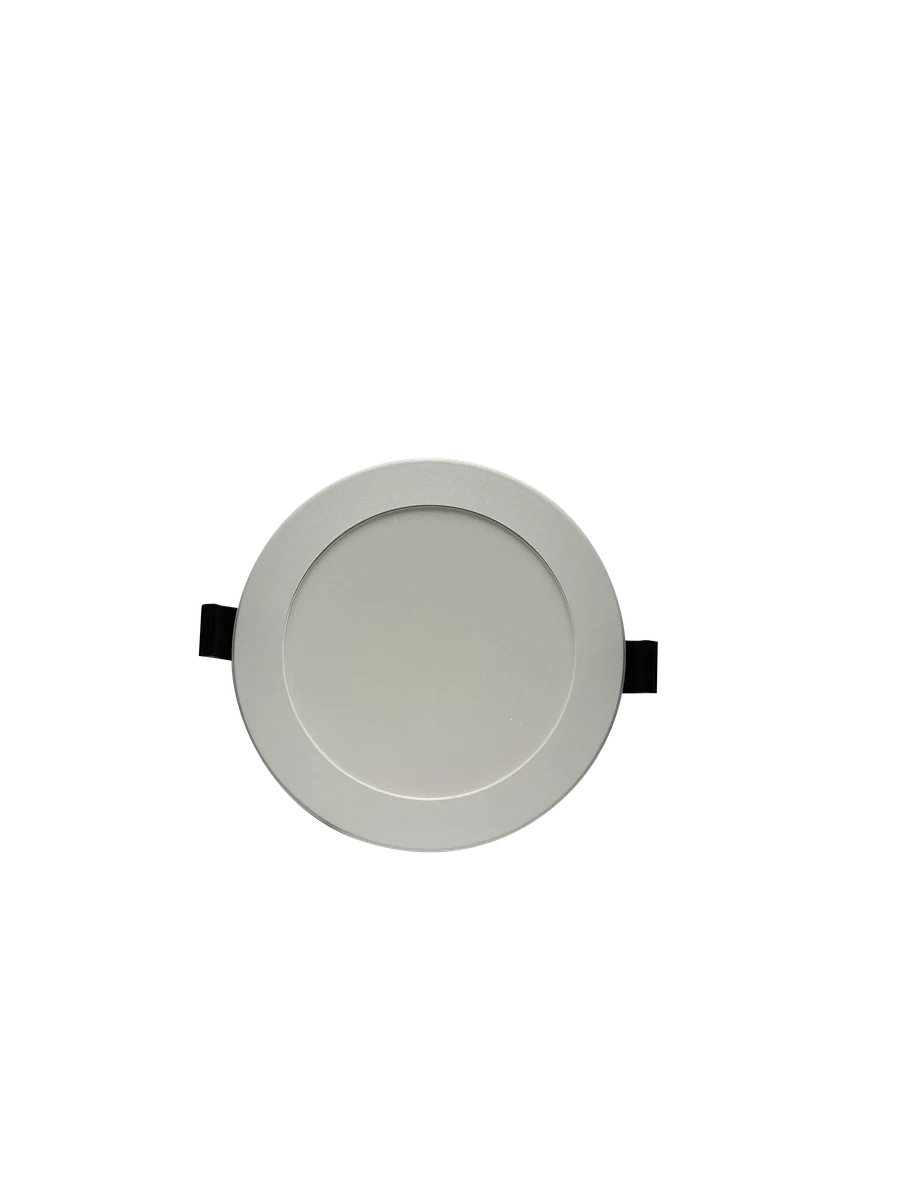

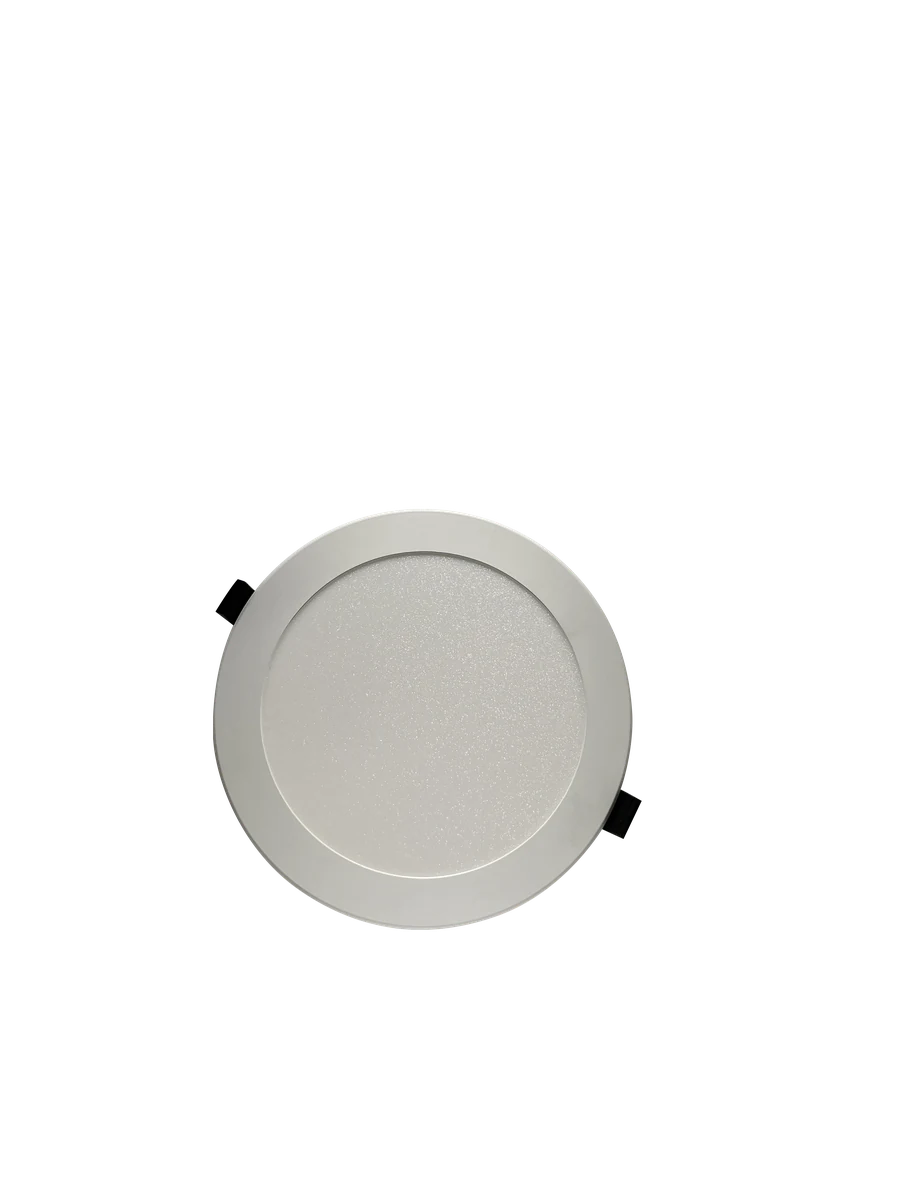

General-purpose recessed LED downlight in three sizes (ø145 / ø190 / ø225 mm) with DIP-switch selectable wattage and color temperature. 120 lm/W, CRI 80, IP65 front face for damp areas, operation from -30 to +55 °C and a 5-year warranty. The same fixture covers offices, retail, homes and hospitality.
Does your project require another standard? We build to your specification.
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
Configure & add to quote
Power
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Mounting
Other / extra requirement
Quantity

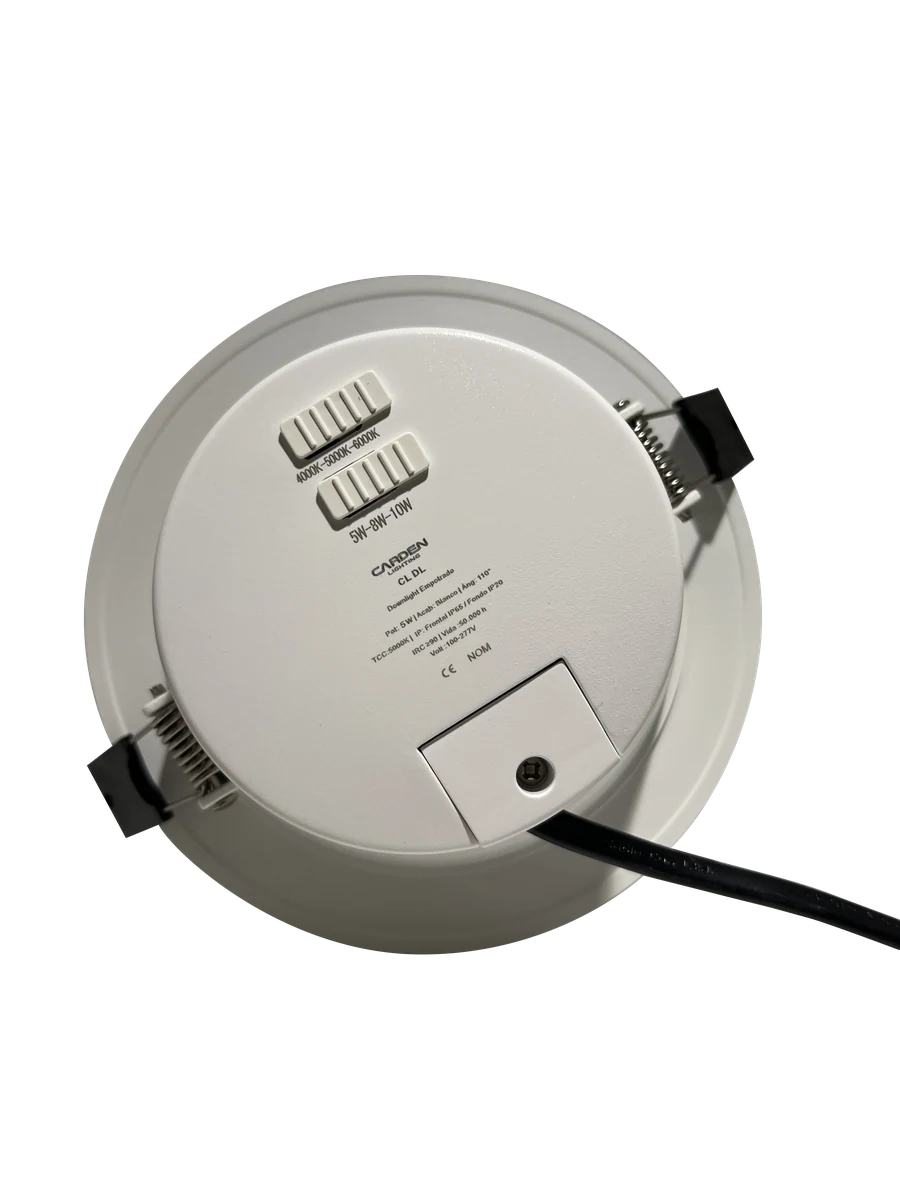

- (1) DIP-selectable wattage (5–30 W by size): adjusts on site without replacing the fixture · (2) color temperature adjustable in the field with the same DIP switch · (3) 120 lm/W · (4) IP65 front face for bathrooms, kitchens and covered eaves · (5) three body sizes for accent and general lighting · (6) 5-year warranty
Specifications
Electrical specifications
- Wattage
- 5–30 W
- Input voltage
- 100–277 VAC (universal range)
- Driver
- Customizable (made to specification)
Photometric specifications
- Luminous flux
- 600 lm (5 W) · 1,440 lm (12 W) · 2,400 lm (20 W)
- Efficacy
- 120 lm/W
- CCT
- 5000 K
- CRI
- Ra 80
Physical, materials & mounting
- Housing
- Aluminum + plastic
- Hardware

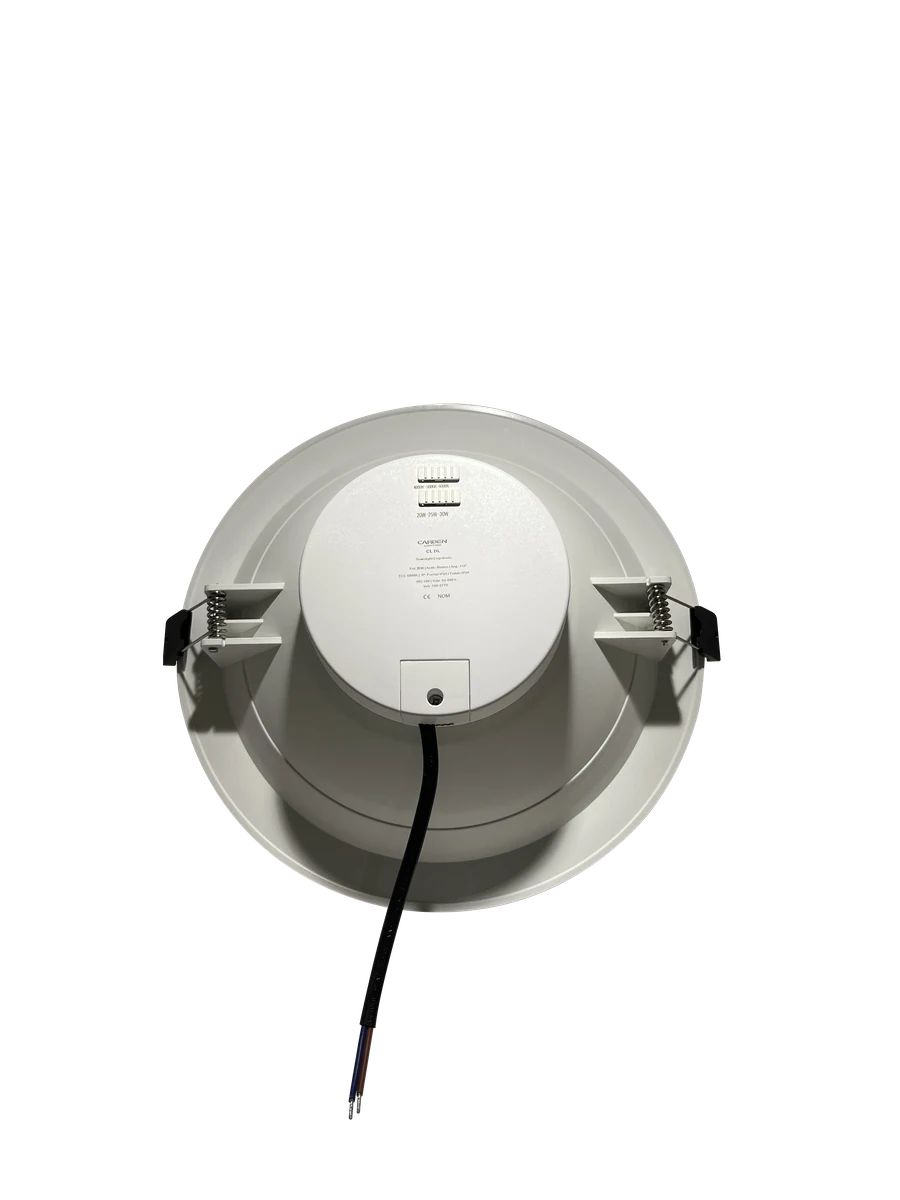

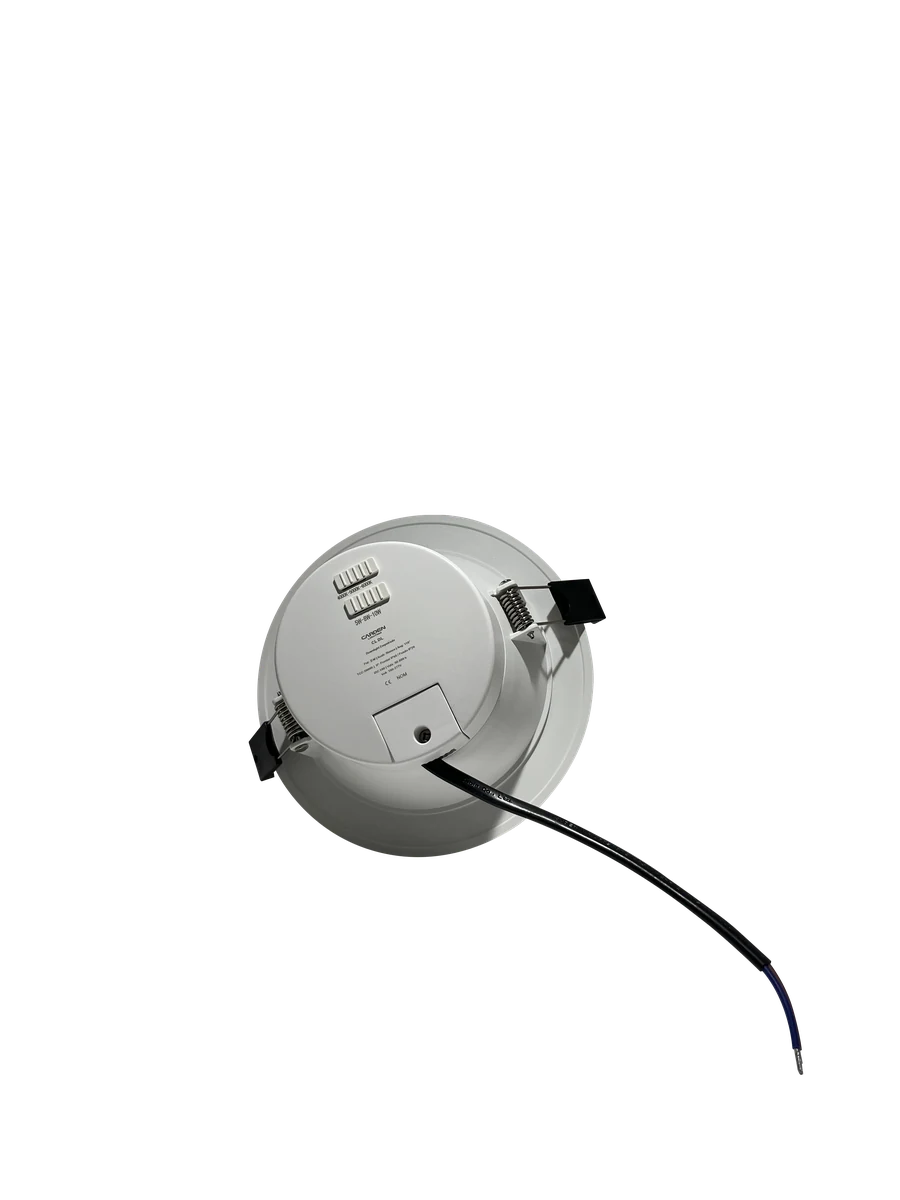

- Spring clips that hold the fixture in the recess
- Mounting
- Ceiling recessed
Protection & lifetime
- IP rating
- IP65 / IP20
- Operating temperature
- -30 °C to +55 °C
- LED lifetime
- 50,000 h · L70
- Warranty
- 5 years
Configurations / SKUs
| SKU | Body and cutout | DIP wattage | Base output | Efficacy | CCT | Dimmable |
|---|---|---|---|---|---|---|
| CL-DL10-145-5W | Ø145 × 65 mm · cutout Ø110 | 5–10 W | 600 lm (@5 W) | 120 lm/W | Wattage & CCT DIP switch (5000 K named) | Wattage set on site by DIP switch |
| CL-DL10-190-12W | Ø190 × 70 mm · cutout Ø150 | 12–18 W | 1,440 lm (@12 W) | 120 lm/W | Wattage & CCT DIP switch (5000 K named) | Wattage set on site by DIP switch |
| CL-DL10-225-20W | Ø225 × 90 mm · cutout Ø200 | 20–30 W | 2,400 lm (@20 W) | 120 lm/W | Wattage & CCT DIP switch (5000 K named) | Wattage set on site by DIP switch |
Swipe the table to see all columns →
Differentiator
The same fixture with DIP-selectable wattage and CCT in three sizes; it adjusts on site without replacing the equipment
Ideal buyer
Commercial interior contractors and designers · residential and hotel developers · retail and corporate purchasing
