CL DLC 10

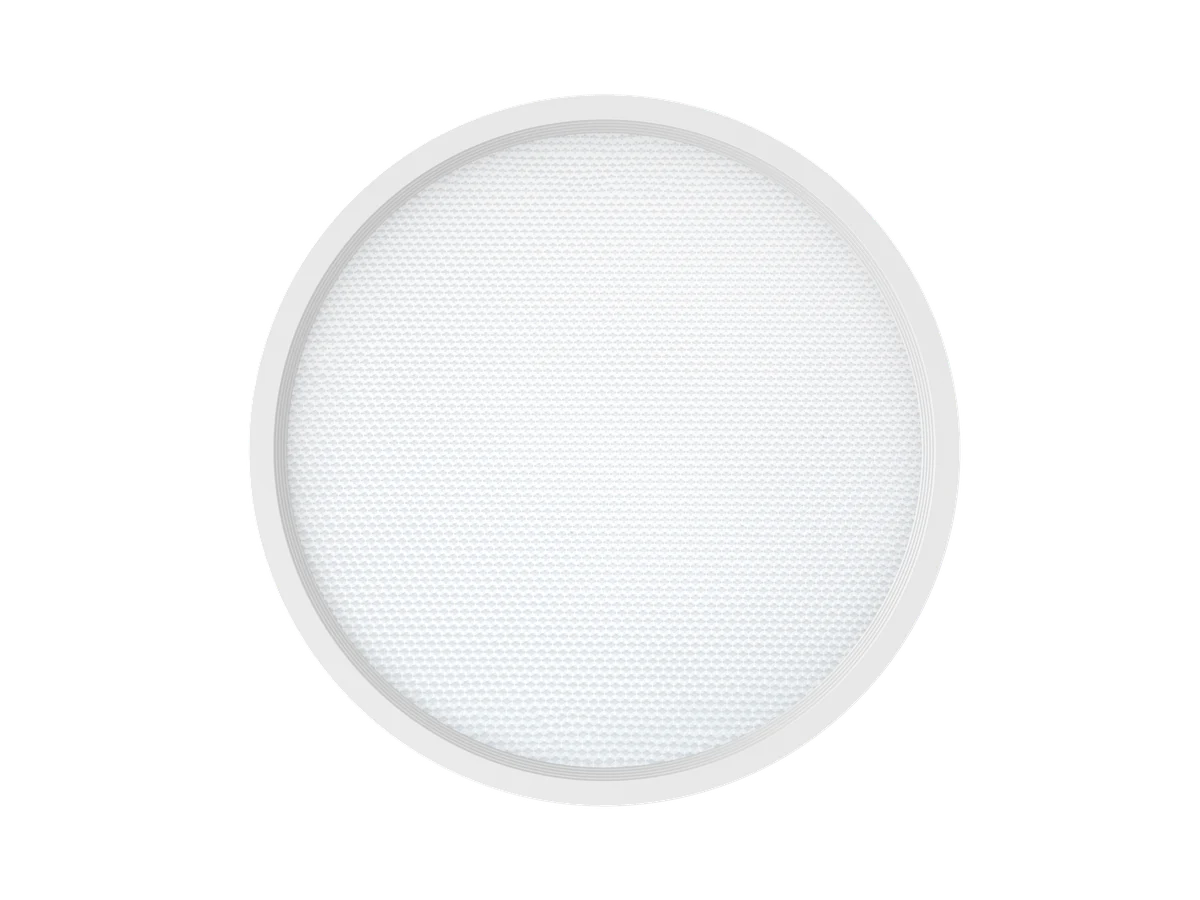

Surface-mount LED downlight, no cut-out: one line, two shapes, 5 light tones
Surface-mount LED downlight less than 1 inch thick that installs on a standard junction box, with no ceiling cutout or recessing work. Available in round and square shapes (5", 6" and 7"), with 5 field-selectable color temperatures, CRI up to 90, TRIAC dimming, damp location rating and a 5-year warranty. cULus listed (US and Canada) and California Title 24 compliant.
Certifications
Does your project require another standard? We build to your specification.
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
Configure & add to quote
Power
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Mounting
Other / extra requirement
Quantity
- (1) Surface mount with no construction: mounts on a junction box with no ceiling cutout, ideal for solid or concrete ceilings · (2) Two shapes in one line (round and square) to unify the project's look · (3) 5 CCTs field-selectable by DIP switch: one product covers 2700–5000 K without requoting · (4) Ultra-thin profile (under 1 inch) with low-UGR microprism diffuser and CRI up to 90 · (5) Damp location rated, TRIAC dimming and 5-year warranty
Specifications
Electrical specifications
- Wattage
- 10–14 W
- Input voltage
- 120 VAC
- Driver
- TRIAC (phase-control dimmable)
- Dimming
- TRIAC dimmable (yes)
- LED type
- SMD
Photometric specifications
- Wattage
- 10–14 W
- Luminous flux
- 800 lm (10 W) · 1,120 lm (14 W) · ±10 % tolerance (values with white finish @4000 K)
- Efficacy
- 80 lm/W
- CCT
- 2700–5000 K
- CRI
- Ra 80 / 90
- Beam angle
- 90°
- UGR
- Optional low-UGR prismatic diffuser
Physical, materials & mounting
- Diffuser
- PMMA microprism for uniform lighting (edge-lit + optical diffuser) · options shown: PMMA · PC · low-UGR prismatic
- Hardware
- Mounting plate designed for a standard junction box
- Finish / color
- White (standard) · black (option)
- Shapes
- Round and square
- Mounting
- Surface mounting (ceiling/wall) with a plate on a junction box, with no ceiling cutout or recessing work
- Dimensions
- Round 5": Ø137 × 17 mm · Round 7": Ø201 × 17 mm · Square 5": 137 × 137 × 17 mm · Square 6": 161 × 161 × 17 mm · body thickness 17 mm (0.67 in, "less than 1 inch") · overall height with mounting base 41.9 mm (1.65 in)
Protection & lifetime
- IP rating
- Suitable for wet locations (wet location rating in the cULus listing)
- Warranty
- 5 years
Configurations / SKUs
| SKU | Shape | Size | Wattage | Luminous flux | Efficacy | CCT | Dimming | Dimensions |
|---|---|---|---|---|---|---|---|---|
| CL-DLC10-R5IN-5CCT | Round | 5" | 10 W | 800 lm | 80 lm/W | 2700–5000 K | Triac | Ø137 × 17 mm |
| CL-DLC10-R7IN-5CCT | Round | 7" | 14 W | 1,120 lm | 80 lm/W | 2700–5000 K | Triac | Ø201 × 17 mm |
| CL-DLC10-S5IN-5CCT | Square | 5" | 10 W | 800 lm | 80 lm/W | 2700–5000 K | Triac | 137 × 137 × 17 mm |
| CL-DLC10-S6IN-5CCT | Square | 6" | 14 W | 1,120 lm | 80 lm/W | 2700–5000 K | Triac | 161 × 161 × 17 mm |
Swipe the table to see all columns →
Differentiator
Surface mounting with no cutout + two shapes + 5 CCTs in the same piece; the fixture adjusts on site to each space, without changing equipment
Ideal buyer
Specifiers and contractors for commercial interiors, offices, hospitality and housing; facilities that need to light ceilings with no plenum or concrete ceilings without recessing work
