CL AR UC 1
3CCT under-cabinet LED bar for kitchen, counter and task lighting

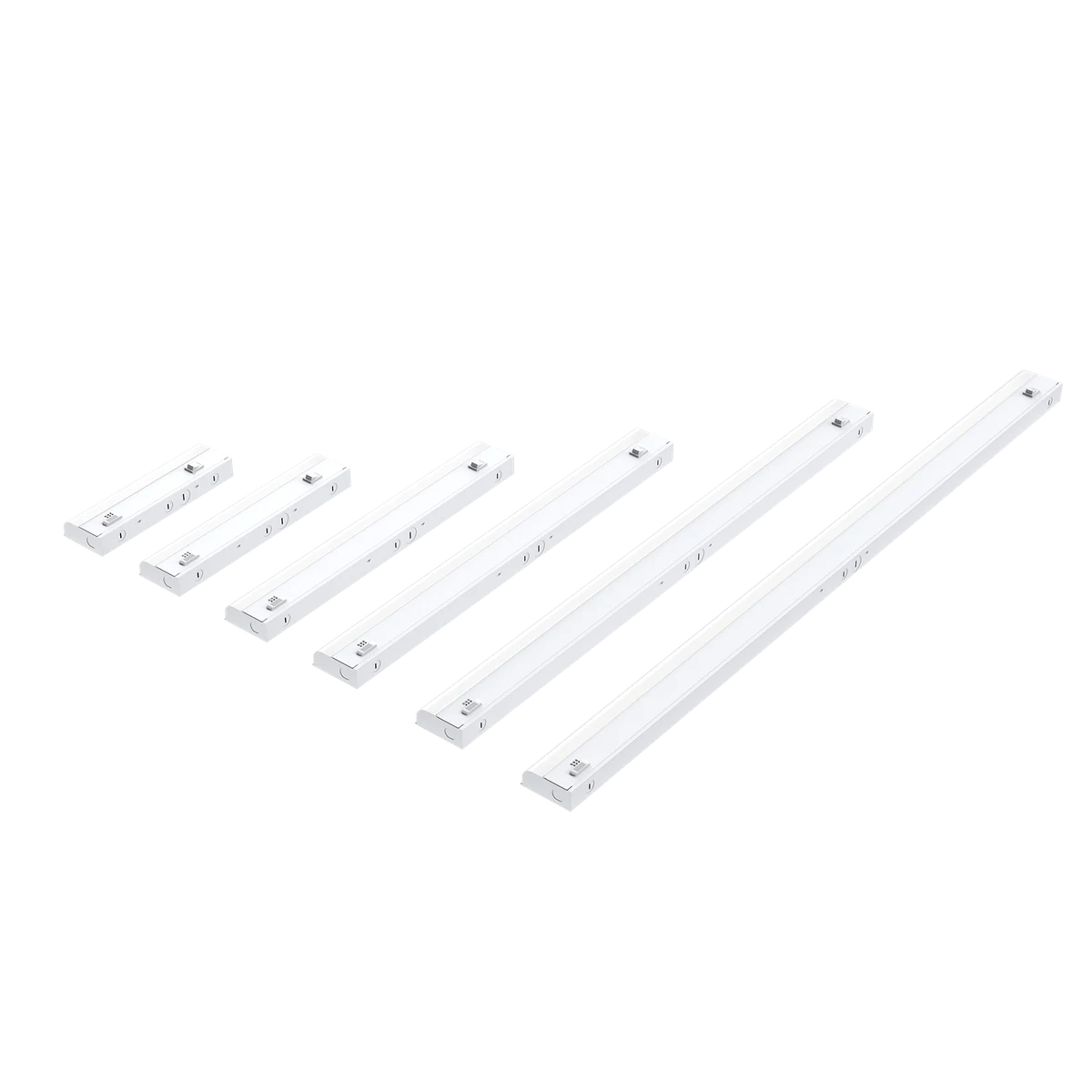

Affordable under-cabinet LED bar in 6 lengths from 9" to 42", ideal for task and accent lighting on countertops, counters, shelves and shelving. SPCC metal body with anti-UV polycarbonate diffuser, white finish, 3 color temperatures selectable on site (3000/4000/5000 K), integrated 120 V driver with TRIAC dimming, CRI 80+, 110° angle and 105 lm/W. Accessible switch and knockouts with an access panel for linked installation. ETL listed (Intertek) for damp locations and FCC compliant.
Certifications
Does your project require another standard? We build to your specification.
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
Configure & add to quote
Power
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Mounting
Other / extra requirement
Quantity
- (1) designed for under-cabinet use: task light on countertops and accent on counters, bars and shelving · (2) 3CCT selectable on site (warm 3000 K to neutral 5000 K) without changing the fixture · (3) linkable: knockouts and access panel for in-line installation covering long runs · (4) 6 lengths (9"–42") that fit short niches or full bars · (5) 120 V TRIAC dimmable with accessible switch and ETL listing for damp locations.
Specifications
Electrical specifications
- Wattage
- 4–20 W
- Input voltage
- AC 120 V (built-in integral electronic driver)
- Dimming
- TRIAC (phase control)
- Driver
- Integrated (built-in) 120 V electronic
- Switch / control
- Accessible rocker on/off switch (0/1) + press-type CCT selector built into the fixture (on-lamp press switch)
Photometric specifications
- Luminous flux
- 420 lm (4 W) · 525 lm (5 W) · 840 lm (8 W) · 1,050 lm (10 W) · 1,575 lm (15 W) · 2,100 lm (20 W): values @4000 K with white finish, ±10% tolerance (black finish 10–15% lower)
- Efficacy
- 105 lm/W
- CCT
- 3000–5000 K
- CRI
- Ra 80
- Beam angle
- 110°
Physical, materials & mounting
- Housing
- SPCC (cold-rolled steel): durable metal housing
- Diffuser
- Anti-UV polycarbonate (PC) lens
- Finish
- White (only finish)
- Dimensions (length)
- 9" = 228.2 mm · 12" = 305 mm · 18" = 457 mm · 24" = 609 mm · 33" = 838 mm · 42" = 1065 mm
- Mounting
- Under-cabinet / surface (shelf, cupboard, furniture), with knockouts and an access panel for mounting and wiring
Protection & lifetime
- Location rating
- Damp location rated: ETL listed for damp locations (kitchens, bars and service areas with humidity, without direct water spray)
- Warranty
- 5 years
Configurations / SKUs
| SKU | Length | Wattage | Luminous flux (@4000 K, ±10%) | Efficacy | Selectable CCT | CRI | Length |
|---|---|---|---|---|---|---|---|
| CL-ARUC1-9IN-3CCT | 9" | 4 W | 420 lm | 105 lm/W | 3000–5000 K | Ra 80 | 228.2 mm |
| CL-ARUC1-12IN-3CCT | 12" | 5 W | 525 lm | 105 lm/W | 3000–5000 K | Ra 80 | 305 mm |
| CL-ARUC1-18IN-3CCT | 18" | 8 W | 840 lm | 105 lm/W | 3000–5000 K | Ra 80 | 457 mm |
| CL-ARUC1-24IN-3CCT | 24" | 10 W | 1,050 lm | 105 lm/W | 3000–5000 K | Ra 80 | 609 mm |
| CL-ARUC1-33IN-3CCT | 33" | 15 W | 1,575 lm | 105 lm/W | 3000–5000 K | Ra 80 | 838 mm |
| CL-ARUC1-42IN-3CCT | 42" | 20 W | 2,100 lm | 105 lm/W | 3000–5000 K | Ra 80 | 1065 mm |
Swipe the table to see all columns →
Ordering code
CL-ARUC1-{length}IN-3CCT Ordering examples: CL-ARUC1-9IN-3CCT CL-ARUC1-24IN-3CCT CL-ARUC1-42IN-3CCTDifferentiator
Affordable, linkable under-cabinet bar with selectable 3CCT, 6 lengths and ETL listing for damp locations: a single family for kitchens, counters, offices and hospitality.
Ideal buyer
Residential kitchens and remodels · interior and millwork/furniture contractors · retail and commerce (display cases and shelving) · hospitality purchasing for kitchenettes and offices
