CL AR V9
Vanity & mirror light with true-color CRI 90+ and 5 selectable CCTs

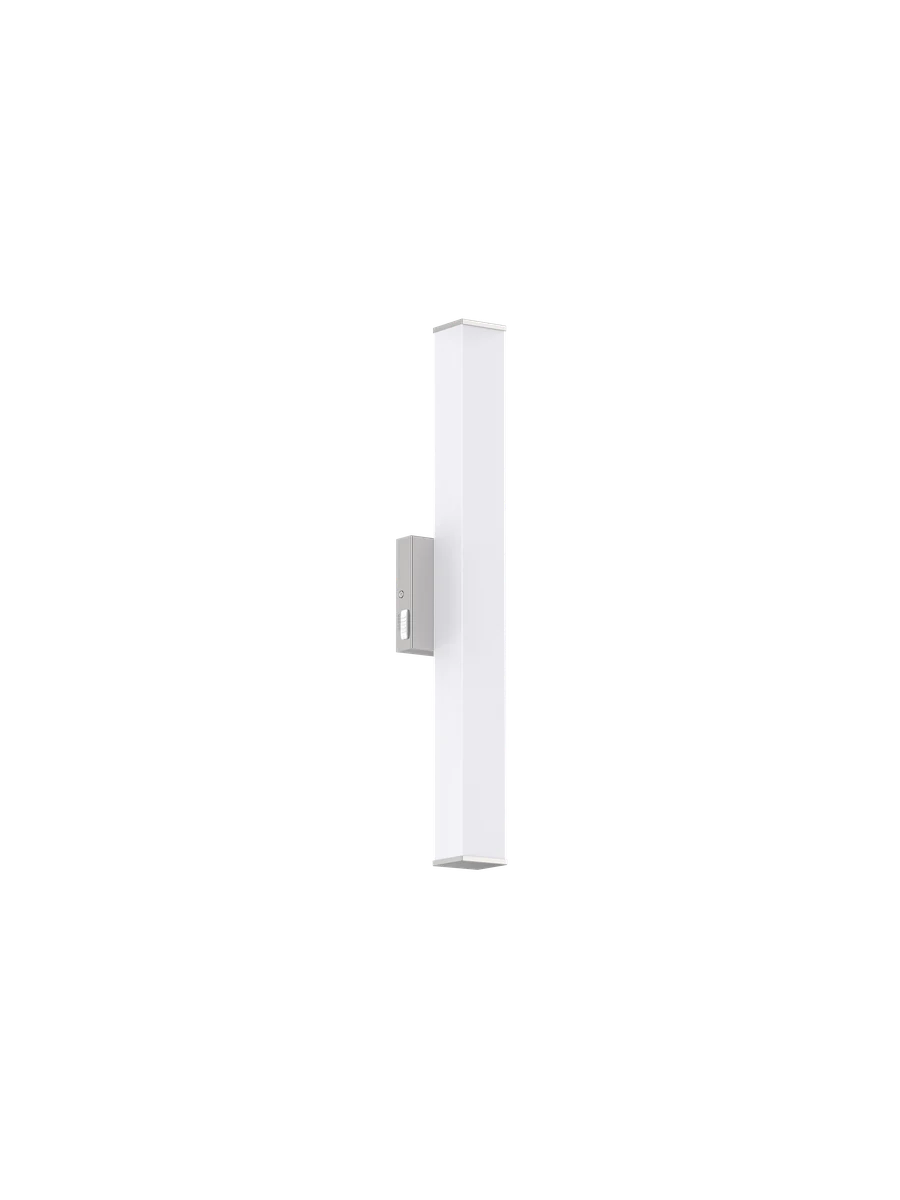

LED wall fixture for mirrors and vanities in three body shapes (cylindrical, square and single-head) and sizes from 13" to 48". Metal base with no visible screws, polycarbonate diffuser and brushed nickel, black and gold finishes. CRI 90+, 5 DIP-selectable color temperatures (2700–5000 K), universal 120–277 V, TRIAC dimming and damp location rating. ETL listed (Intertek).
Certifications
Does your project require another standard? We build to your specification.
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
Configure & add to quote
Power (field-switchable)
Pick the SKU, then mark which of the 3 is the factory default (highlighted). Field-switchable.
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Mounting
Other / extra requirement
Quantity
- (1) CRI 90+ for true skin tones in makeup and grooming · (2) 5CCT selectable on site, from warm 2700 K to neutral 5000 K, without changing the fixture · (3) three shapes and four sizes, from residential bathroom mirrors to hotel suites · (4) damp location rated · (5) three designer finishes (silver, black, gold) that match faucets and hardware.
Specifications
Electrical specifications
- Wattage
- 10–32 W
- Input voltage
- AC 120–277 V (universal)
- Frequency
- 50/60 Hz
- Power factor
- 0.9
- Dimming
- TRIAC (phase control)
- Driver
- Integrated (constant voltage)
Photometric specifications
- Luminous flux
- 900–3,900 lm depending on shape and size (see SKU table · ±10 %)
- Efficacy
- 100–125 lm/W
- CCT
- 2700–5000 K
- CRI
- Ra 90
- Beam angle
- 137° / 140° / 175°
Physical, materials & mounting
- Housing
- Metal (metal base, no visible screws)
- Diffuser
- PC (polycarbonate); diffuser covering the LED module
- Hardware / base
- Integrated wall mounting plate/base (included)
- Finishes
- Brushed nickel (silver) · black · gold
- Weight
- (net per piece): 0.57–1.02 kg depending on SKU (see SKU table)
- Mounting
- Wall mount · the cylindrical and square shapes install horizontally above or beside the mirror; the single-head installs vertically as a sconce
Protection & lifetime
- Location rating
- Damp location rated: bathrooms and washrooms with humidity, without direct water spray
- Operating temperature
- -20 °C to +45 °C (-4 °F to 113 °F)
- Storage temperature
- -20 °C to +65 °C (-4 °F to 149 °F)
- LED lifetime
- 50,000 h
Configurations / SKUs
| SKU | Shape | Size | Wattage | Luminous flux | Efficacy | Beam angle | CRI | Net weight |
|---|---|---|---|---|---|---|---|---|
| CL-ARV9-CYL-18IN-13W | Cylindrical | 18" | 13 W | 1,500–1,700 lm | 115–125 lm/W | 140° | Ra 90 | 0.57 kg |
| CL-ARV9-CYL-24IN-16W | Cylindrical | 24" | 16 W | 1,800–2,000 lm | 115–125 lm/W | 140° | Ra 90 | 0.61 kg |
| CL-ARV9-CYL-36IN-25W | Cylindrical | 36" | 25 W | 2,800–3,100 lm | 115–125 lm/W | 140° | Ra 90 | 0.74 kg |
| CL-ARV9-CYL-48IN-32W | Cylindrical | 48" | 32 W | 3,600–3,900 lm | 115–120 lm/W | 140° | Ra 90 | 0.83 kg |
| CL-ARV9-SQ-18IN-13W | Square | 18" | 13 W | 1,400–1,700 lm | 110–125 lm/W | 137° | Ra 90 | 0.66 kg |
| CL-ARV9-SQ-24IN-16W | Square | 24" | 16 W | 1,700–2,000 lm | 110–125 lm/W | 137° | Ra 90 | 0.73 kg |
| CL-ARV9-SQ-36IN-25W | Square | 36" | 25 W | 2,700–3,000 lm | 110–120 lm/W | 137° | Ra 90 | 0.88 kg |
| CL-ARV9-SQ-48IN-32W | Square | 48" | 32 W | 3,500–3,800 lm | 110–120 lm/W | 137° | Ra 90 | 1.02 kg |
| CL-ARV9-SH-13IN-10W | Cylindrical single-head | 13" | 10 W | 900–1,100 lm | 100–110 lm/W | 175° | Ra 90 | 0.68 kg |
Swipe the table to see all columns →
Ordering code
CL-ARV9-{shape}-{size}IN-{W}W-{finish} Full ordering examples: CL-ARV9-CYL-36IN-25W-SV CL-ARV9-SQ-24IN-16W-BK CL-ARV9-SH-13IN-10W-GDDifferentiator
True color with CRI 90+, selectable 5CCT and three designer shapes/finishes in a single family, damp location rated and ETL listed.
Ideal buyer
Hospitality and residential architects and interior designers · hotel chain purchasing · bathroom remodeling contractors · beauty retail and salons
