Carden CL DL 11 commercial recessed LED downlight with smooth trim, four sizes

Your configuration

Updates with your selection in “Configure & add to quote”

Featured function

Select power · color in a single luminaire.

Power (W)

Color (CCT)

Commercial

CL DL 11

Name: CL DL 11
Brand: Carden Lighting
SKU: CL-DL11-4IN-5-13W-5CCT

Selectable commercial LED downlight: 5 wattages and 5 CCTs in one fixture

Power5 – 40 W

Efficacy100 – 110 lm/W

Flux540 – 1450 lm (4") · 1100 – 2400 lm…

CCT2700 – 5000 K

CRIRa 80

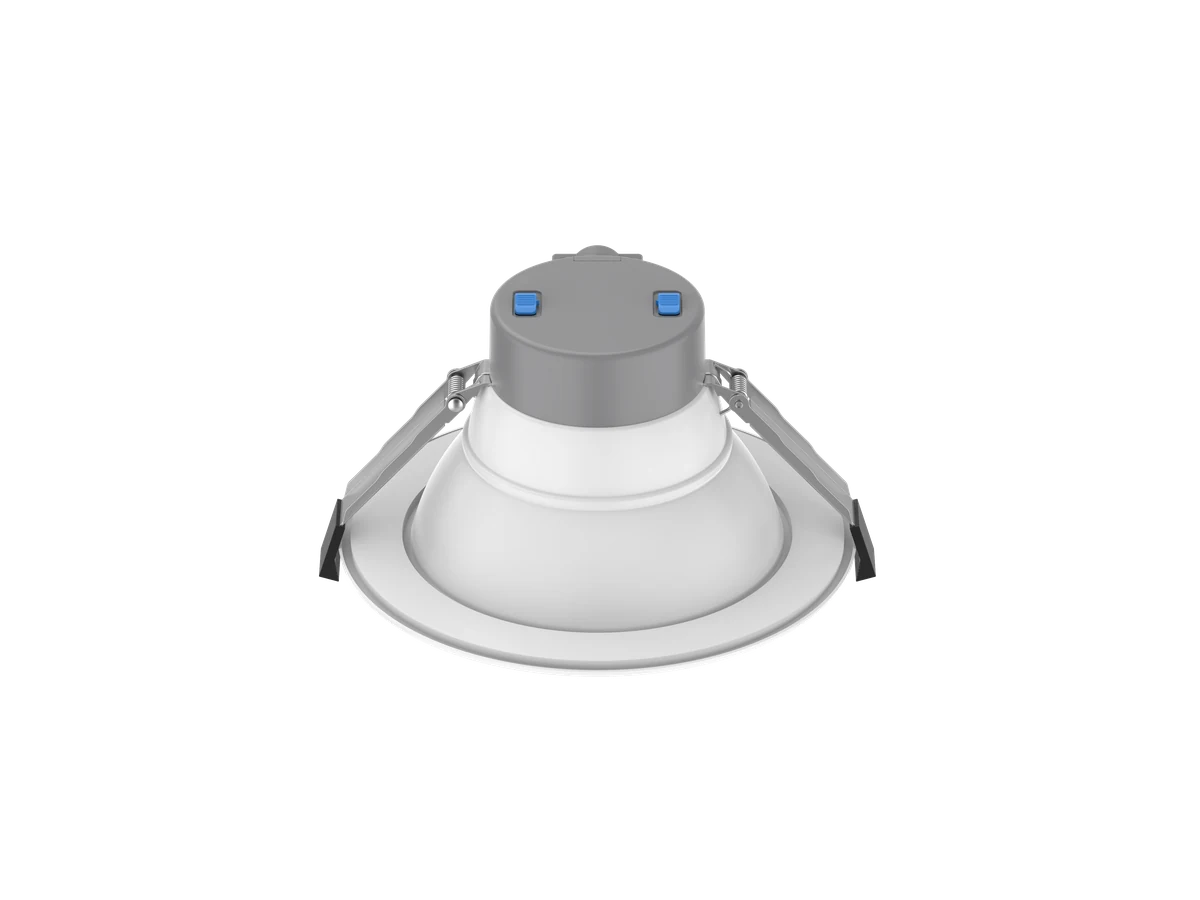

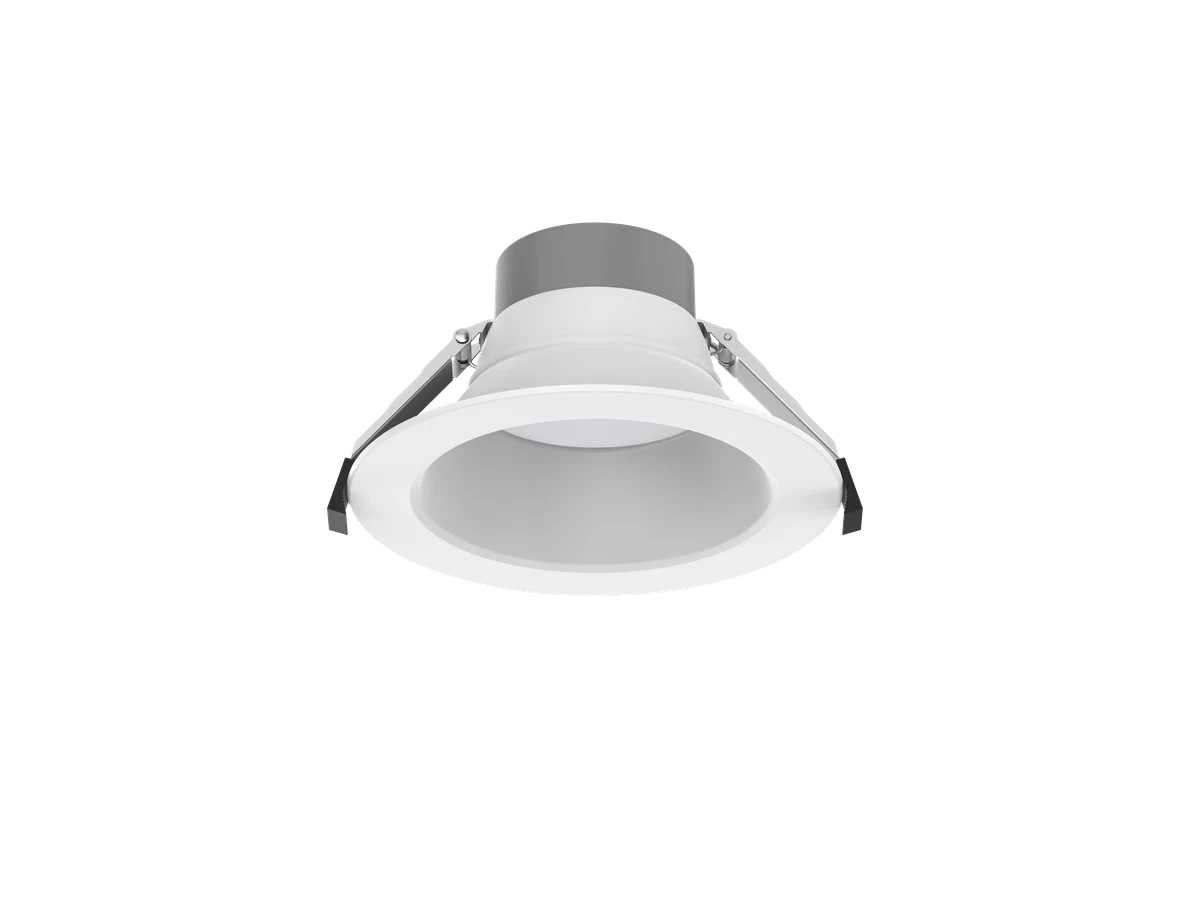

Specification-grade commercial recessed LED downlight, available in 4"/6"/8"/10". A single fixture covers 5 wattage levels and 5 color temperatures (2700–5000 K) selectable by DIP switch at installation: it adjusts on site without replacing the fixture. 100–110 lm/W efficacy, 0-10 V dimming, flicker-free driver, wet location and Type IC rating. Smooth or baffle trims in four colors; surface-mount version for 6" and 8". ETL listed (cETLus) for the US and Canada.

Certifications

ETLcETLus

Does your project require another standard? We build to your specification.

Request a quote Request data sheet Request IES files

5-year warrantyResponse in under 24 h

Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →

Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.

Your configuration

Updates with your selection in “Configure & add to quote”

Configure & add to quote

Power (field-switchable)

////W

Pick the SKU, then mark which of the 3 is the factory default (highlighted). Field-switchable.

Light color

We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.

Mounting

Other / extra requirement

Quantity

Where it's used

Offices and corporate: general lighting for work floors and meeting rooms; CCT selection (2700–5000 K) adapts the ambiance by zone without changing the fixture.Retail: stores, supermarkets and showrooms; CRI 80 and an 80°/90° beam for uniform general lighting with a trim finish that matches the interior.Healthcare: corridors, waiting rooms and doctor's offices; wet location rating and 0-10 V dimming for control by area.Education: classrooms, libraries and common areas; the same fixture adjusts classroom by classroom without changing equipment.Hospitality and restaurants: lobbies, corridors and dining rooms; warm CCT (2700/3000 K) for ambiance and smooth or baffle trims for glare control.Industrial facilities and warehouses (administrative / service areas): office ceilings inside the facility, workshops and support areas; surface-mount version (6"/8") where there is no plenum.

Featured benefits

(1) 5 wattages × 5 CCTs by DIP switch: the fixture adjusts on site, zone by zone, without replacing it · (2) 100–110 lm/W with flicker-free driver and 0-10V dimming · (3) Wet Location + Type IC for bathrooms, kitchens and insulated plenums · (4) four trim colors (white + matte silver, black, nickel, bronze) and Smooth/Baffle styles to blend into any interior · (5) surface-mount version (6"/8") and optional emergency battery

Specifications

Electrical specifications

Wattage: 5–40 W
Input voltage: 120-277 V / 120-347 V (multi-voltage)
Frequency: 50/60 Hz
Power factor: 0.9
Dimming: 0-10V (integrated flicker-free driver)
Driver: Integrated (built-in), flicker-free
Emergency function: Optional: compatible with an emergency battery pack (accessory)

Photometric specifications

Luminous flux: 540–1450 lm (4") · 1100–2400 lm (6") · 1400–3300 lm (8") · 2500–4200 lm (10"), depending on the selected wattage (±10%)
Efficacy: 100–110 lm/W
CCT: 2700–5000 K
CRI: Ra 80
Beam angle: 80° / 90°

Physical, materials & mounting

Housing: Aluminum (passive cooling; integrated lamp design)
Diffuser / optics: PC (polycarbonate)
Hardware: Bend-back spring clips for recessed mounting
Trim styles: Smooth and baffle (with anti-glare grooves)
Mounting: Recessed as standard · optional surface mount with a dedicated housing in 6" and 8"
Dimensions (cutout diameter): 4" = Ø102–133 mm · 6" = Ø157–190.5 mm · 8" = Ø203–241 mm · 10" = Ø225–270 mm
Weight: 4" = 0.30 kg (0.66 lb) · 6" = 0.44 kg (0.97 lb) · 8" = 0.63 kg (1.39 lb) · 10" = 0.69 kg (1.52 lb)
Packaging: 24 pcs/box (4") · 12 pcs/box (6" and 8") · 6 pcs/box (10")

Protection & lifetime

IP rating: Wet Location
Type IC: IC rated (suitable for direct contact with thermal insulation in the plenum)
Operating temperature: -20 °C to +40 °C (-4 °F to 113 °F)
Storage temperature: -20 °C to +65 °C (-4 °F to 149 °F)
LED lifetime: 50,000 h

Configurations / SKUs

SKU	Size	Cutout (Ø)	Wattages by DIP (W)	Luminous flux	Efficacy	Beam	Voltage	Dimming	CRI	Weight
CL-DL11-4IN-5-13W-5CCT	4"	102–133 mm	5–13 W	540–1450 lm	100–110 lm/W	80°	120-277V / 120-347V	0-10V	Ra 80	0.30 kg
CL-DL11-6IN-10-22W-5CCT	6"	157–190.5 mm	10–22 W	1100–2400 lm	100–110 lm/W	80°	120-277V / 120-347V	0-10V	Ra 80	0.44 kg
CL-DL11-8IN-12-30W-5CCT	8"	203–241 mm	12–30 W	1400–3300 lm	100–110 lm/W	90°	120-277V / 120-347V	0-10V	Ra 80	0.63 kg
CL-DL11-10IN-22-40W-5CCT	10"	225–270 mm	22–40 W	2500–4200 lm	100–110 lm/W	90°	120-277V / 120-347V	0-10V	Ra 80	0.69 kg

Swipe the table to see all columns →

Ordering code

CL-DL11-{size}IN-{Wmin}-{Wmax}W-5CCT size: 4 · 6 · 8 · 10 (inches) W range: 4"→5-13 · 6"→10-22 · 8"→12-30 · 10"→22-40 5CCT: 2700/3000/3500/4000/5000 K selectable by DIP switch

Differentiator

Each size covers 25 configurations (5 wattages × 5 CCTs) selectable on site: maximum specification flexibility, with ETL/cETLus listing and Wet Location + Type IC rating

Ideal buyer

Specifiers and electrical contractors on commercial projects · purchasing for retail, hospitality, healthcare and education chains · distributors looking to standardize the downlights they stock
