Commercial
CL TL 10

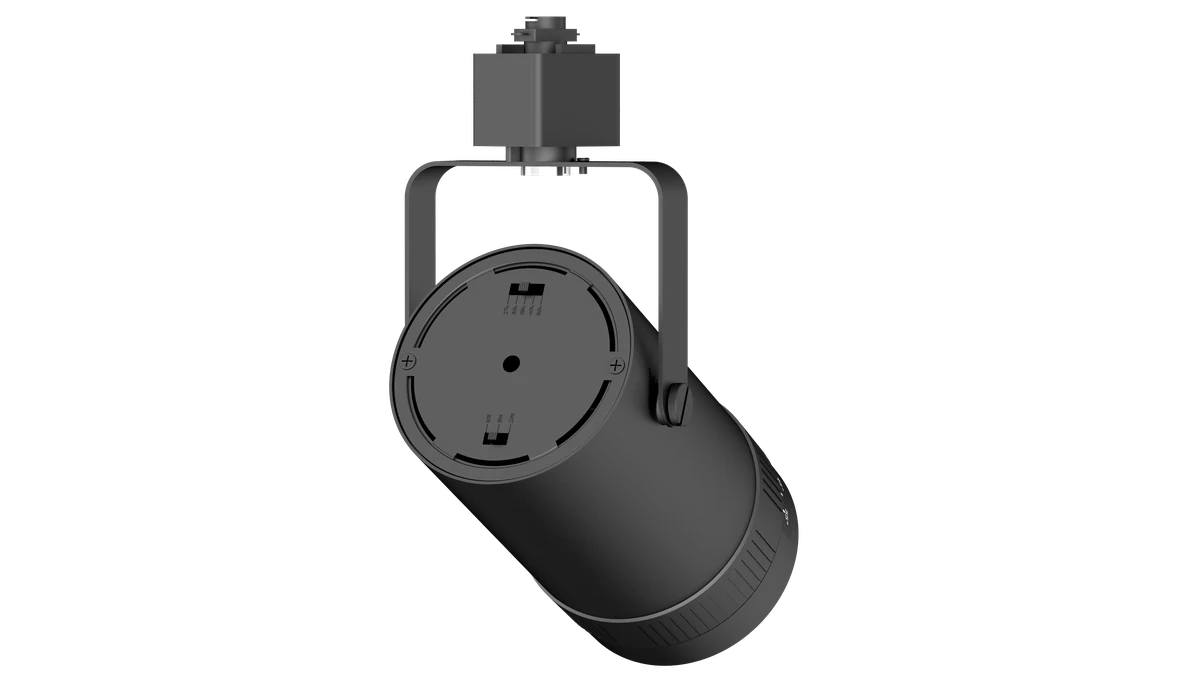

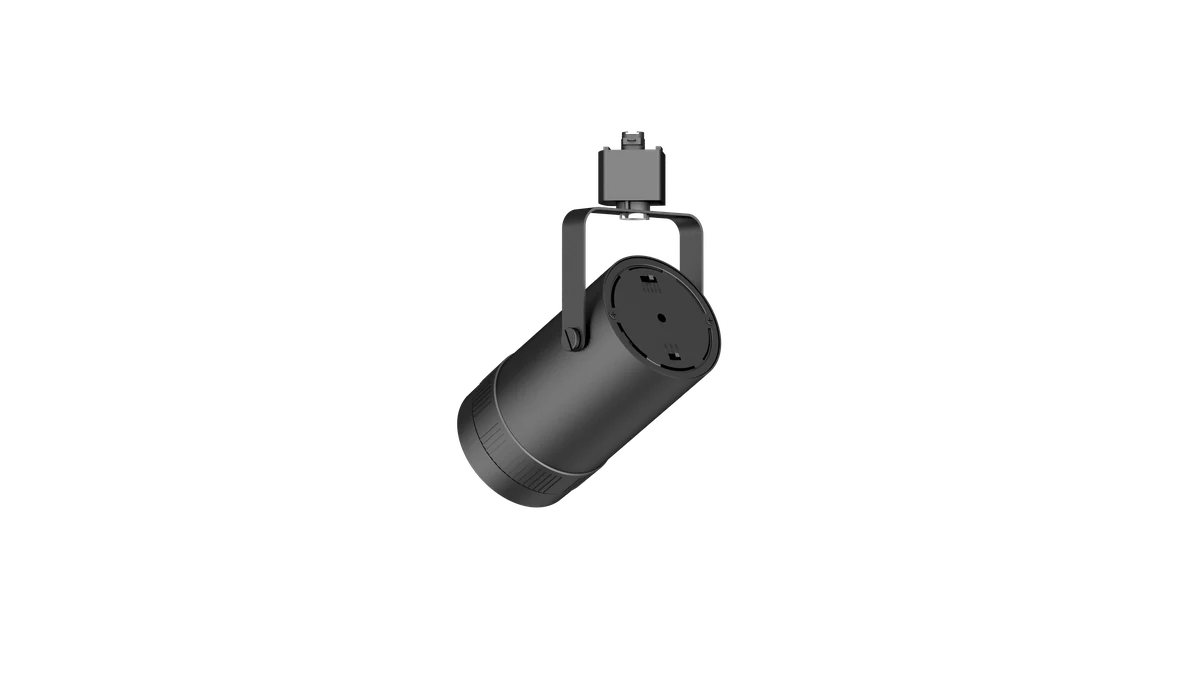

Zoomable LED track spotlight for retail and gallery accent lighting
LED accent track spot with a hand-adjustable zoom beam from 15° to 55°, for stores, galleries, hospitality and showrooms. CRI 90, TRIAC dimming, five color temperatures (2700–5000 K), 350° rotation and 180° tilt, and a 3-in-1 adapter compatible with HALO-type track. UL listed (US and Canada) for dry interiors.
Certifications
Does your project require another standard? We build to your specification.
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
Configure & add to quote
Power
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Mounting
Other / extra requirement
Quantity
- (1) 15°–55° zoom beam in a single fixture: from spot to soft wash without changing optics · (2) CRI 90 that reveals the color and texture of merchandise and artwork · (3) five CCTs (2700–5000 K) to match the mood to the space · (4) 3-in-1 H/J/L adapter compatible with 3-wire HALO track · (5) 350°/180° adjustable head to reframe without reinstalling · (6) UL Listed (cULus) and TRIAC dimming.
Specifications
Electrical specifications
- Wattage
- 7–20 W
- Input voltage
- AC120V
- Dimming
- TRIAC (dimmable with a TRIAC wall dimmer)
- Driver
- Integrated
Photometric specifications
- Luminous flux
- 630 lm (7 W) · 900 lm (10 W) · 1,350 lm (15 W) · 1,800 lm (20 W): white finish @ 4000 K (±10 %); black finish 10–15 % lower
- Efficacy
- 90 lm/W
- CCT
- 2700–5000 K
- CRI
- Ra 90
- Beam angle
- 15° / 24° / 36° / 45° / 55°
Physical, materials & mounting
- Housing
- ADC12 die-cast aluminum
- Diffuser
- Zoom optic lens
- Finish
- White or black (specify when ordering; black delivers 10–15 % fewer lumens)
- Dimensions
- Ø85 mm (3.3 in) × overall height 253.1 mm (10.0 in) · partial body dimension 158 mm (6.2 in)
- Mounting
- Electrified track (track mount) · 3-in-1 adapter that converts between H / J / L bases · compatible with 3-wire single-circuit HALO-type track
- Orientation
- 350° horizontal rotation · 180° vertical tilt (adjustable head)
Protection & lifetime
- Warranty
- 5 years
- Location
- Dry indoor location
Configurations / SKUs
| SKU | Wattage | Luminous flux | Efficacy | CCT (static, choose 1) | Voltage | Dimming | Certification |
|---|---|---|---|---|---|---|---|
| CL-TL10-7W | 7 W | 630 lm | 90 lm/W | 2700–5000 K | AC120V | Triac | UL Listed |
| CL-TL10-10W | 10 W | 900 lm | 90 lm/W | 2700–5000 K | AC120V | Triac | UL Listed |
| CL-TL10-15W | 15 W | 1,350 lm | 90 lm/W | 2700–5000 K | AC120V | Triac | UL Listed |
| CL-TL10-20W | 20 W | 1,800 lm | 90 lm/W | 2700–5000 K | AC120V | Triac | UL Listed |
Swipe the table to see all columns →
Differentiator
A single head covers 15° to 55° with CRI 90: accent flexibility on site without replacing the fixture or the optic.
Ideal buyer
Store designers and visual merchandisers · interior and museum architects · commercial and hotel lighting integrators.
