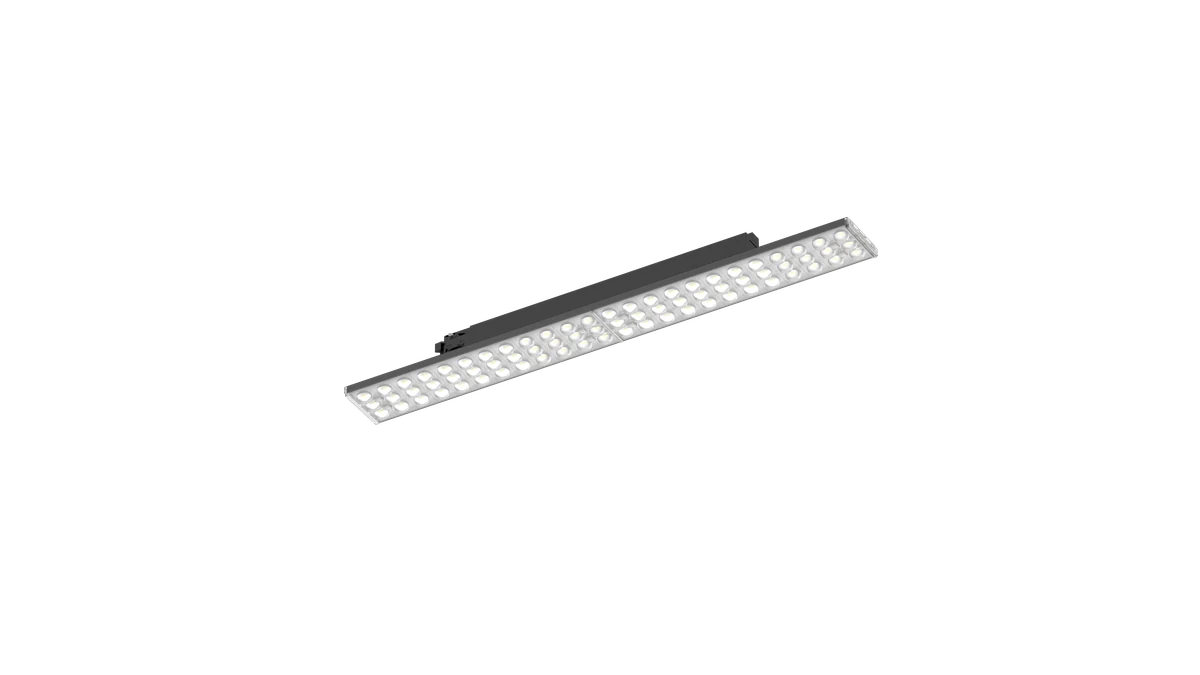

Carden CL TL 13 high-output linear LED track light on H-type track in a supermarket aisle

Your configuration

Updates with your selection in “Configure & add to quote”

Commercial

CL TL 13

Name: CL TL 13
Brand: Carden Lighting
SKU: CL-TL13-600-5CCT

High-output LED linear track light: wattage and color set right on the track

Power15 – 60 W

Efficacy120 – 160 lm/W

Flux3,800 – 4,500 lm (600 mm) · 8,000 – 9…

CCT2700 – 5000 K

CRIRa 90

High-output linear LED track light for supermarkets, retail and large-format stores, in 2 ft (600 mm) and 4 ft (1200 mm). A single fixture adjusts 3 wattage levels (up to 30 W in 2 ft, 60 W in 4 ft) and 5 color temperatures (2700–5000 K) right at installation, without replacing the equipment. Up to 9,200 lm and 160 lm/W, CRI 90 and TRIAC dimming (120 V AC). Three optics to choose from (multi-beam lens (30°/60°/90°/20° asymmetric), 120° opal diffuser and 70° grille) for accent, general wash and high aisles. Compatible with standard H-type track. cULus listed fixture (UL US + Canada), suitable for dry locations.

Certifications

cULusUL

Does your project require another standard? We build to your specification.

Request a quote Request data sheet Request IES files

5-year warrantyResponse in under 24 h

Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →

Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.

Your configuration

Updates with your selection in “Configure & add to quote”

Configure & add to quote

Power

Light color

We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.

Mounting

Other / extra requirement

Quantity

Where it's used

Retail: supermarkets, big-box stores, convenience stores and large-format retail; the multi-beam lens (30°/60°/90°) accents gondolas and fresh produce, and the 120° opal diffuser gives an even general wash, with up to 9,200 lm per 4 ft bar.Industrial facilities, warehouses and logistics: warehouse-style sales floors (price clubs) and high-ceiling floor areas; the high linear output and asymmetric 20°/70° optics light long aisles with few track lines.Industry and manufacturing: assembly lines, inspection areas and workshops with medium-high ceilings; the 70° grille controls glare over workstations and the color is set by zone (2700–5000 K).Offices and corporate: open floors, halls and showrooms on H-type track; repositioning and re-aiming lets you adapt the lighting layout when the furniture changes, with no construction.Hospitality and restaurants: lobbies, buffets and hotel retail areas; warm CCT (2700/3000 K) for ambiance and accent optics for products and counters.

Featured benefits

(1) high linear output: up to 9,200 lm and 160 lm/W per 4 ft bar for high ceilings and large areas · (2) adapts on site: 3 wattages and 5 CCTs are set on the track, without changing the fixture · (3) three optics (multi-beam / 120° opal / 70° grille) for accent, general wash and aisles · (4) CRI 90 and TRIAC dimming, 120 VAC · (5) mounts on standard H-type track, reconfigurable by zone with no construction · (6) cULus listed (UL US + Canada) and suitable for dry locations

Specifications

Electrical specifications

Wattage: 15–60 W
Input voltage: AC 120 V
Dimming: Triac (AC120V Triac Dimmable)
Driver: Integrated, compatible with TRIAC dimming

Photometric specifications

Luminous flux: 3,800–4,500 lm (600 mm) · 8,000–9,200 lm (1200 mm), depending on the selected optics and wattage (values at full power, ±10 %, @3000 K, white/gold trim)
Efficacy: 120–160 lm/W
CCT: 2700–5000 K
CRI: Ra 90
Beam angle: 20° / 30° / 60° / 70° / 90° / 120°

Physical, materials & mounting

Housing: Aluminum (linear profile, passive cooling)
Diffuser / optics: Three versions: multi-beam lens · opal diffuser (120°) · grille (70°)
Hardware: Track adapter: compatible with standard H-type track (3 circuits)
Trim finishes: White trim · gold trim · black. Published output applies to the white/gold trim; the black finish reduces output by 10–15 %
Mounting: Track-mounted; the system integrates with standard H-type track to reconfigure position and beam by zone
Dimensions: (overall length · width · body height · light module), by optical version:

Protection & lifetime

Warranty: 5 years

Configurations / SKUs

SKU	Length	Wattage (selectable)	CCT	Luminous flux	Efficacy	CRI	Voltage	Dimming
CL-TL13-600-5CCT	600 mm (2 ft)	15–30 W	2700–5000 K	3,800–4,500 lm	120–150 lm/W	Ra 90	AC 120 V	Triac
CL-TL13-1200-5CCT	1200 mm (4 ft)	40–60 W	2700–5000 K	8,000–9,200 lm	130–155 lm/W	Ra 90	AC 120 V	Triac

Swipe the table to see all columns →

Ordering code

CL-TL13-{length}-{CCTmode}-{optic}-{finish} length: 600 (2 ft) · 1200 (4 ft) wattage: 600 → 15/22/30 W · 1200 → 40/50/60 W (selectable, not part of the base SKU) CCTmode: 5CCT (2700–5000 K selectable) · SCCT (fixed factory CCT) optic: LENS (multi-beam 30/60/90/90x30/20° asymmetric) · OPAL (120°) · GRILLE (70°) finish: WT (white trim) · GT (gold trim) · BK (black, −10-15% output)

Differentiator

High-output linear bar (up to 9,200 lm / 160 lm/W) that adapts on site (wattage and color adjustable on the track) with three interchangeable optics on standard H-type track, covering accent, general wash and high aisles with one system

Ideal buyer

Retail and supermarket specifiers and contractors · project managers for retail chains, hospitality and light industry · track lighting distributors
