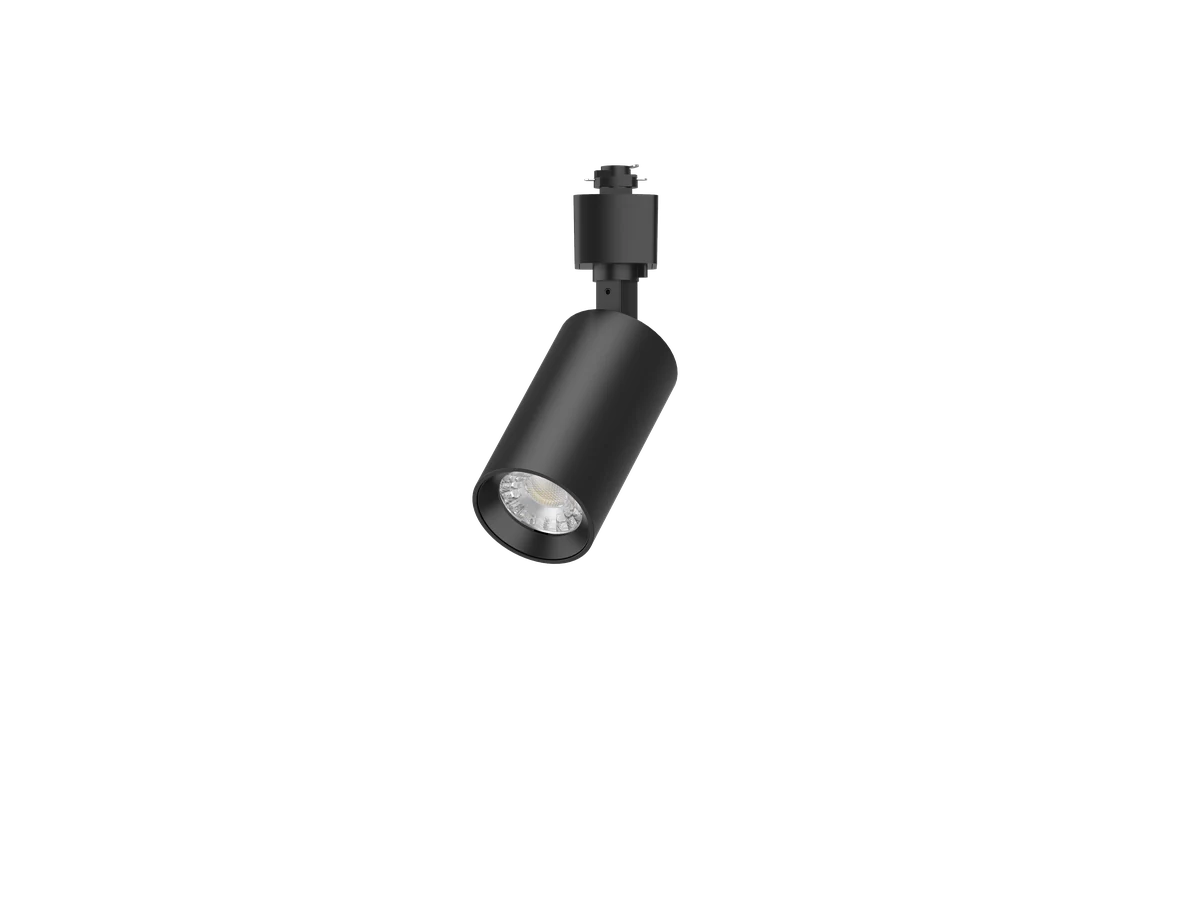

CL TL 14

Name: CL TL 14
Brand: Carden Lighting
SKU: CL-TL14-6W-3CCT

Orientable accent spotlight for retail displays, art and architecture

Power6 W

Efficacy90 lm/W

Flux560 lm (±10%): white finish @4000…

CCT3000 – 5000 K

CRIRa 90

LED mini accent spot for track, surface or recessed mounting. 6 W, 560 lm and CRI 90 with 3 selectable CCTs (3000/4000/5000 K), interchangeable 24/36/60° reflector and a head that rotates 350° and tilts 70°. Low-glare aimable light to highlight display cases, merchandise, artwork and architectural surfaces indoors. TRIAC dimming, ETL certification (Intertek) and damp location rating.

Certifications

ETLcETLus

Does your project require another standard? We build to your specification.

Request a quote Request data sheet Request IES files

5-year warrantyResponse in under 24 h

Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →

Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.

Your configuration

Updates with your selection in “Configure & add to quote”

Configure & add to quote

Power

Light color

We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.

Mounting

Other / extra requirement

Quantity

Where it's used

Retail: accent lighting on display cases, counters, mannequins and featured merchandise in stores and boutiques; the interchangeable reflector fits the beam spread to the object being highlighted.Hospitality and restaurants: accents on tables, bars, murals and reception elements; the head rotates 350° and tilts 70° to reframe the scene without reinstalling the fixture.Museums, galleries and art exhibitions: low-glare aimable light with CRI 90 for color fidelity on paintings, pieces and sculptures.High-value residential: highlighting walls, niches, wine cellars, collections and art; the selectable 3 CCT fine-tunes the color temperature without changing equipment.Offices/corporate and indoor or covered façades: accent on logos, receptions and architectural surfaces indoors and in covered areas.

Featured benefits

(1) CRI 90 for faithful color on products and art · (2) interchangeable 24/36/60° reflector that fits the beam to the object without changing the fixture · (3) 350° rotation + 70° tilt to reframe the scene on site · (4) 3 CCTs selectable on the fixture to fine-tune the color temperature on site · (5) triple mounting (track / surface / recessed) for the same head.

Specifications

Electrical specifications

Wattage: 6 W
Voltage: AC 120 V
Dimming: TRIAC (phase cut, on/off dimmable): flicker-free internal driver

Photometric specifications

Luminous flux: 560 lm (±10%): white finish @4000 K; black finish delivers 10–15 % less
Efficacy: 90 lm/W
CCT: 3000–5000 K
CRI: Ra 90
Beam angle: 24° / 36° / 60°
Flicker: Flicker-free internal driver

Physical, materials & mounting

Housing: Aluminum
Diffuser / optics: Interchangeable low-glare optical reflector (24/36/60°); front trim available in white, black or gold
Orientation: Head with 350° horizontal rotation and 70° tilt
Mounting: Multiple modes: track · surface · recessed
Dimensions: Head Ø 2 3/16″ (≈ 55.6 mm) · body height 4″ (≈ 101.6 mm) · overall height with track adapter 6 1/4″ (≈ 158.75 mm)

Protection & lifetime

Warranty: 5 years

Configurations / SKUs

SKU	Wattage	Luminous flux	Efficacy	CCT	CRI	Voltage	Dimming
CL-TL14-6W-3CCT	6 W	560 lm (±10%)	90 lm/W	3000–5000 K	Ra 90	AC 120 V	Triac

Swipe the table to see all columns →

Differentiator

The same head covers three beam spreads, three CCTs and three mounting modes; it adapts on site to the object and the space without replacing the fixture.

Ideal buyer

Retail and visual merchandising · interior design and architects · hospitality and museum design · commercial lighting integrators
